Karma Ergo Lite Transit Wheelchair
Safe & Secure Shopping
We accept all major payment types.
Free local engineer setup
All local deliveries include free set up and demonstration.
Couldn't load pickup availability
Need help choosing the right product?

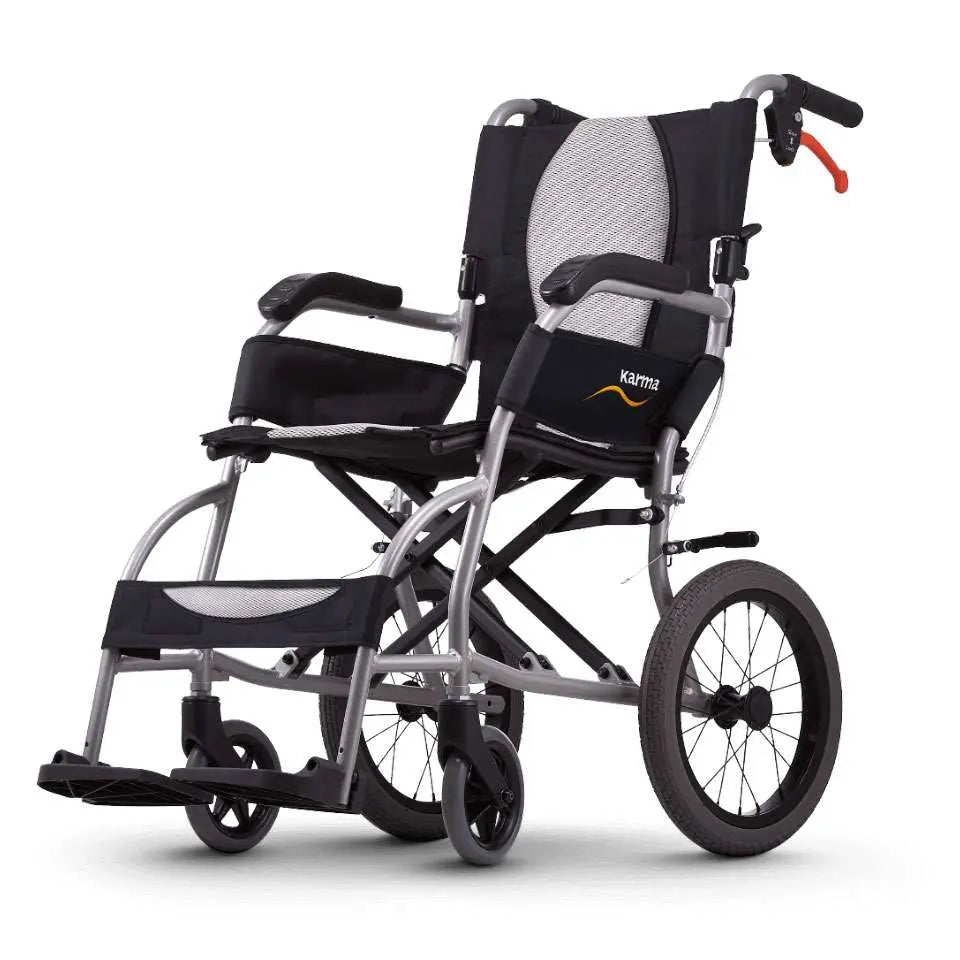

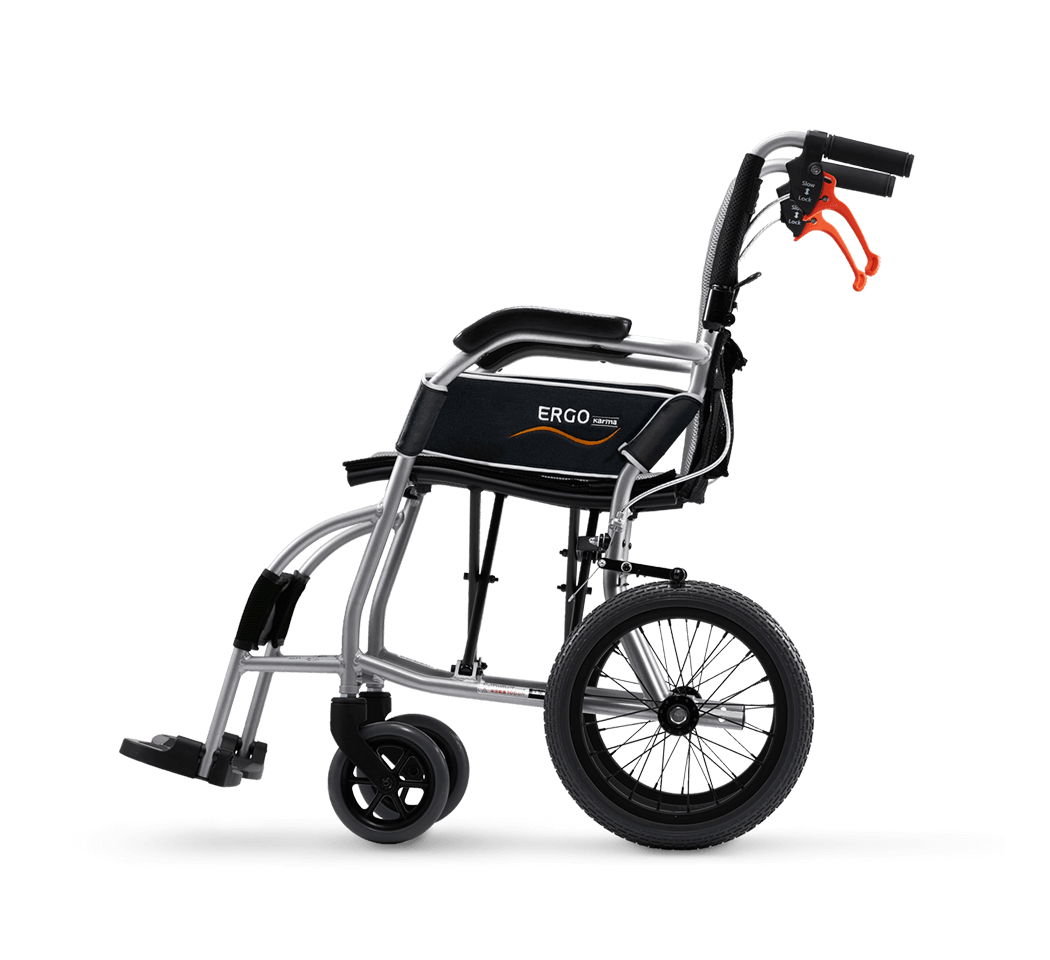

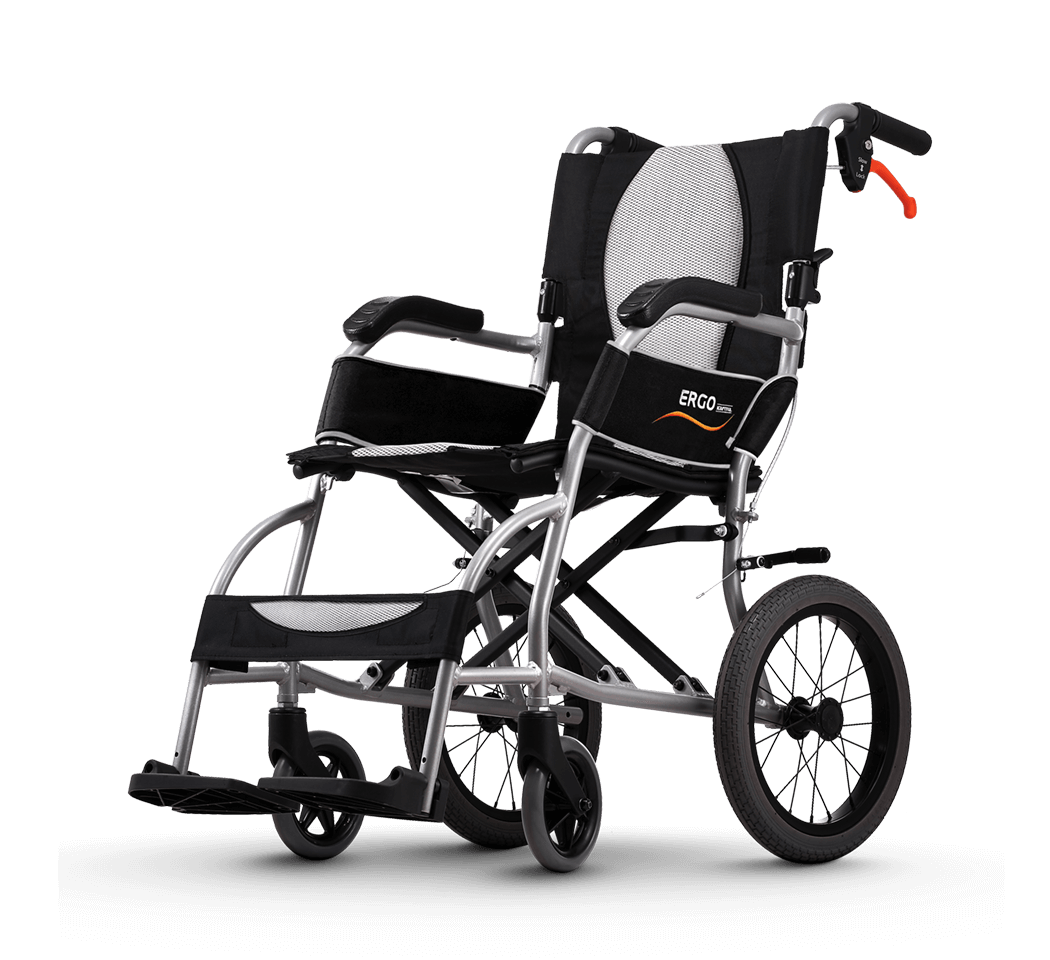

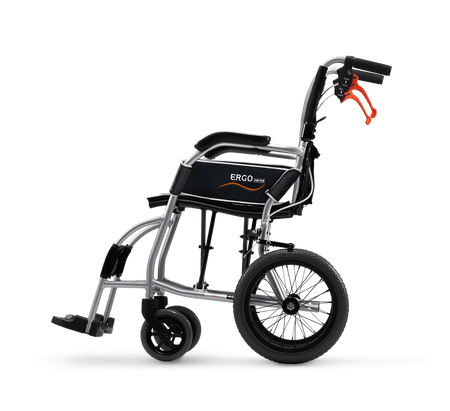

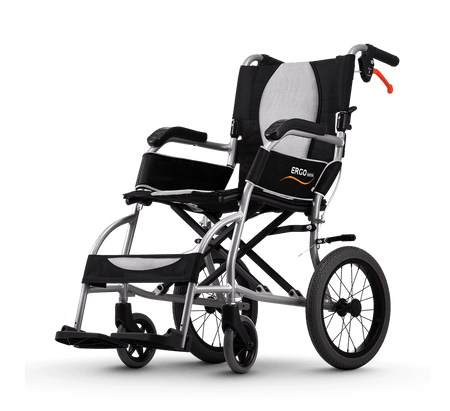

Experience unparalleled ease with the Ergo Lite, Karma's lightest attendant-propelled wheelchair at just 8.5kg. Its streamlined, compact design makes it a perfect choice for individuals seeking a straightforward and feather-light mobility solution. Enhanced with Karma's exclusive S-Ergo seating system, it offers superior comfort.

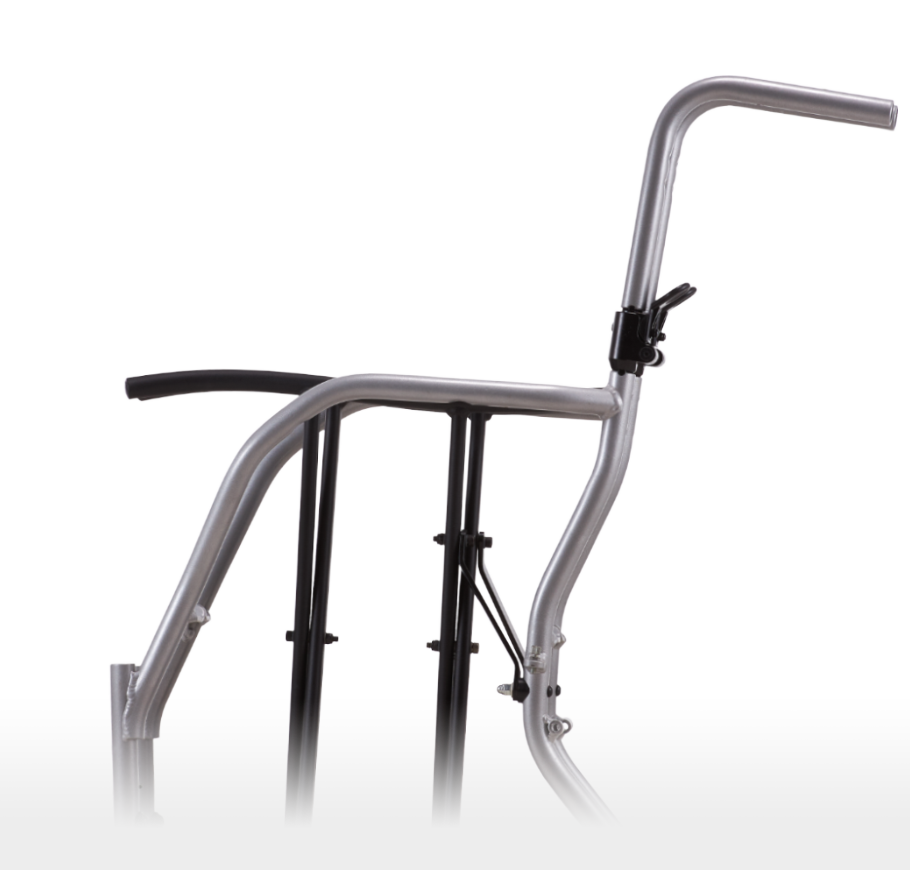

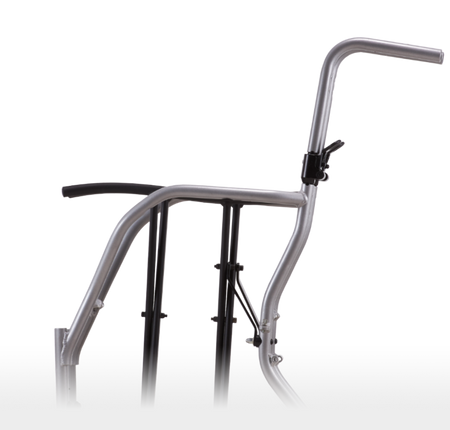

Feather-light and Robust Construction
Designed with the caregiver in mind, the Ergo Lite's minimal 8.5kg weight significantly reduces the risk of back strain associated with lifting. Despite its lightness, it offers remarkable sturdiness and safety, positioning it as potentially the lightest crash-tested wheelchair on the market.

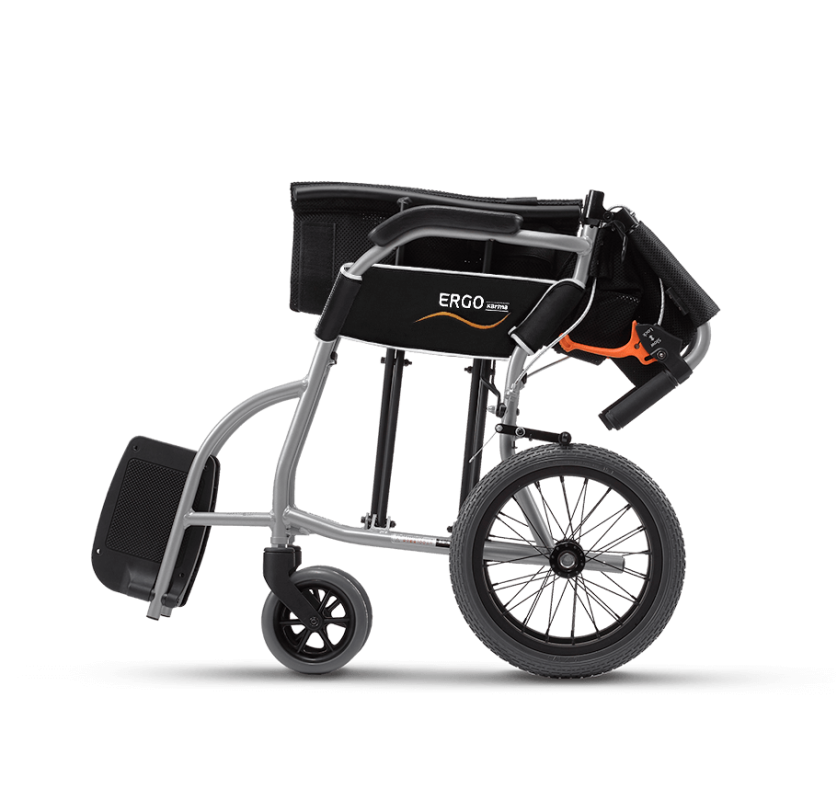

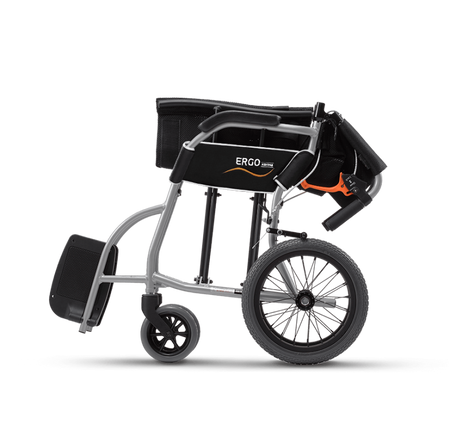

Convenient Folding Mechanism
Effortless storage and transport are facilitated by the foldable backrest and frame, simplifying journeys and domestic arrangements.
Patented S-Ergo Seating System
Globally patented, the S-Ergo Seating system provides inherent pressure relief, minimizing the need for additional cushions. The seat contours to the user, delivering exceptional comfort.
Intuitive Push & Pull Brake System
Caregivers will appreciate the innovative attendant brakes, allowing for easy parking and unparking without needing to lean forward. Simply push to engage the brakes and pull to release.
Ergonomic Desk-length Armrests
The desk-length armrests are thoughtfully designed to allow wheelchair users to get closer to tables and desks.
Certified for Vehicle Transport
The Ergo Lite meets rigorous safety standards, being crash-test approved in accordance with ISO 7176-19. This certification confirms its suitability as a secured seat within motor vehicles during transit.
| Weight: | 8.5kg |
| Type: | Attendant Propelled Transit Wheelchair |
| Seating System: | S-Ergo Seating System |
| Brakes: | Push & Pull Attendant Brakes |
| Armrests: | Desk-length |
| Transportation Approval: | ISO 7176-19 (Crash Tested) |
| Foldability: | Foldable Backrest and Frame |
Specifications:
| Product Model | Ergo Lite (KM-2501) | |
| Nominal seat width (mm/in)* | 400 / 16 | 450 / 18 |
| Nominal seat depth (mm/in)** | 430 / 16 | 430 / 16 |
| Front caster / Rear wheel size (in) | 6 / 14 | 6 / 14 |
| Backrest height (mm) | 420 | 420 |
| Headrest height above seat (mm) | N/A | N/A |
| Armrest to seat distance (mm) | 210 | 210 |
| Front location of armrest structure (mm) | 310 | 310 |
| Seat surface height at front edge (mm) | 480 | 480 |
| Footrest to seat distance (mm) | 395 ~ 410 | 395 ~ 410 |
| Effective seat width (mm) | 400 | 450 |
| Effective seat depth (mm) | 420 | 420 |
| Seat plane angle (X°) | 5 | 5 |
| Backrest angle (X°) | 11 | 11 |
| Seat to backrest angle (X°) | 96 | 96 |
| Leg to seat angle (X°) | 102 | 102 |
| Overall length with legrest (mm) | 930 | 930 |
| Overall width (mm) | 560 | 610 |
| Overall height (mm) | 905 | 905 |
| Folded length (mm) | 830 | 830 |
| Folded width (mm) | 275 | 280 |
| Folded height (mm) | 700 | 710 |
| Total mass (kg) | 8.6 | 8.8 |
| Mass of the heaviest part (kg) | 8.6 | 8.8 |
| Maximum user weight (kg) | 100 | 100 |
| Minimum turning radius (mm) | 670 | 670 |
| Minimum turning radius without user (mm) | 740 | 740 |
| Pivot width (mm) | 1050 | 1050 |
| Static stability downhill (X°) | 16 | 16 |
| Static stability uphill (X°) | 11.5 (with anti-tippers) | 11.5 (with anti-tippers) |
| Static stability sideways (X°) | 16 | 16 |
| Handrim diameter (mm) | N/A | N/A |
| Horizontal location of axle (mm) | 5 | 5 |
